Portable Jobsite Spray Booth™ (PJSB)
Regular price
$1,054.00 CAD (includes shipping)
Taxes calculated at checkout.
The Portable Jobsite Spray Booth (PJSB) has a precision-manufactured, fully collapsible, aluminum frame and uses disposable plastic liners to protect the jobsite while spraying non-flammable, non-combustible finishes. This walk-in, open-faced booth sets up in minutes without tools, and packs into one carry bag for easy transport between jobs. Designed for indoor use on jobsites or in workshops.
This affordable, portable, professional paint spray booth is the perfect solution for spraying/applying finishes, sanding, routing or any other application where you want to keep particulate contained and/or away from your work pieces. With its disposable liners, the PJSB can be used over and over again, providing years of service, saving thousands of dollars in set-up and clean-up costs.
To be used with Non-Flammable / Non-Combustible Paints & Solvents Only. Use with proper respirator.
Features:- Disposable 5-sided clear plastic liner provides overspray protection to the ceiling, floor and three sides.
- Clear plastic liners let in ambient or supplemental light.
- High quality, durable aluminum extrusion frame and support poles.
- Magnetic connections on the support poles and vent attachment for quick and easy assembly.
- Available ventilation attachment accommodates air filter, ducting and blower system. Filtered exhaust can be routed as required.
- No-tools, one-person assembly in about 15 minutes.
- Quickly packs into one carry/storage bag (45 lbs).
- Dimensions: 2m (80”) x 2m (80”) x 2m (80”)
Included:
- 1 durable aluminum extension frame and support poles
- 3 disposable plastic liners (extras sold separately)
- 1 heavy-duty carry bag
Sold Separately:
To be used with Non-Flammable / Non-Combustible Paints & Solvents Only. Use with proper respirator.
The PJSB Engineering Review:
ProDryingRack EX™ (PDREX)
Regular price
$1,055.00 CAD (includes shipping)
Taxes calculated at checkout.
Our robust and expandable ProDryingRack EX (PDREX) stretches from 20” to almost 60” in width for the larger pieces of your project. Fifteen levels hold up to 60 lbs each. Round, 1” diameter, removable tubes of 30” lock into place with just a turn (no tools). If you need more than the 3” of usable space between the levels, just remove “levels” until you have the room you need.
Clamp levers in the back easily allow the user to expand and contract the rack before loading. With a high-quality, all-metal build, including fully gusseted support, reinforced bottom plate construction and powder coated finish, the ProDryingRack EX is a versatile addition for any cabinet or woodworking shop.
- Expands from 20" to 60"
- 15 shelf levels with removable tubes
- Clamp levers for easy expansion/contraction and adjustment
- Material: powder-coated steel, gusseted support structure with reinforced bottom plate
- 4 casters total (2 locking)
- Weight capacity: 60 lbs per level (900 lbs total)
For even more horizontal space, check out the ProDryingRack EX Plus Series.
SprayTwirly™ (SPTY)
Regular price
$243.00 CAD (includes shipping)
Taxes calculated at checkout.
This rotating spray table is designed for painting cabinet doors and parts with precision and ease. With its 360-degree rotation, the SprayTwirly allows for complete control and accuracy when painting all sides of your cabinet doors and parts while standing in one spot. Retractable arms and adjustable magnetic spikes make it a versatile tool for painting a range of cabinet door sizes. Quickly and easily assemble it (no tools required), then pack it up to transport to your next job.
- Get 360-degree rotation for a precision finish
- No need to walk around it
- Adjustable arms to accommodate a range of cabinet sizes
- Table height increased on Lot #104
PSDR 12" Height Extenders (Set of 2)
Regular price
$40.00 CAD (includes shipping)
Taxes calculated at checkout.
The Height Extenders allow you to add 12" of height to the PSDR Series rack, extending it from 69" to 81". This makes it more versatile for hanging larger parts such as shutters or tall cabinet doors.
The Extenders not only add another foot of height, but also include two pegs for connecting an additional horizontal bar, creating a second level and additional 6’ of drying line, perfect for small parts or narrow cabinet doors.
The Extenders can be used to step up a single section in a drying run or used for increasing the height in the spray stand section.
-
Quantity: Set of 2 (2 pieces total)
- Material: Powder-coated steel
-
Color: White
PSDR Poles (Set of 4)
Regular price
$132.00 CAD (includes shipping)
Taxes calculated at checkout.
Set of four 66" poles to be used with the ProDryingRack SD (PSDR) Series.
- Quantity: 4 poles
- Size: 66"
- Material: Powder-coated steel
- Color: White
- Purchase does not include a carry bag

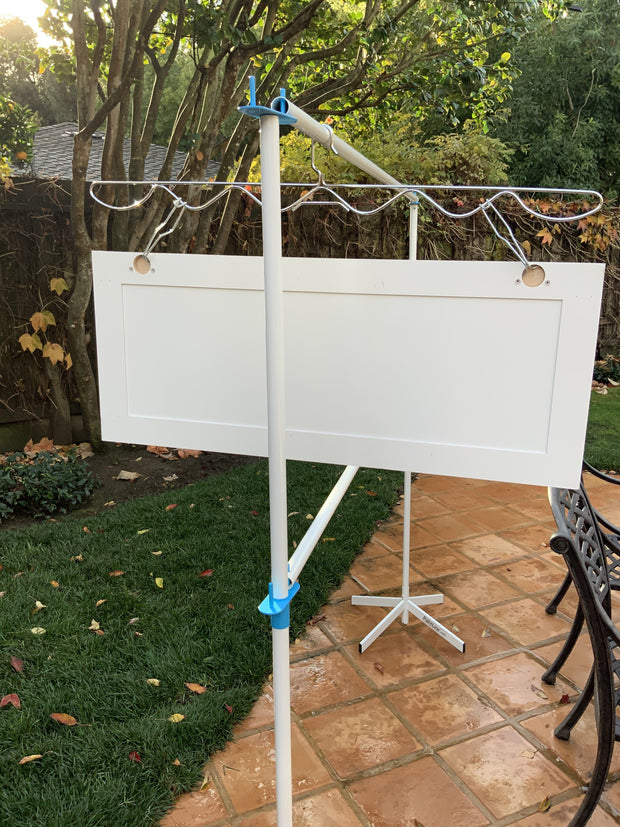

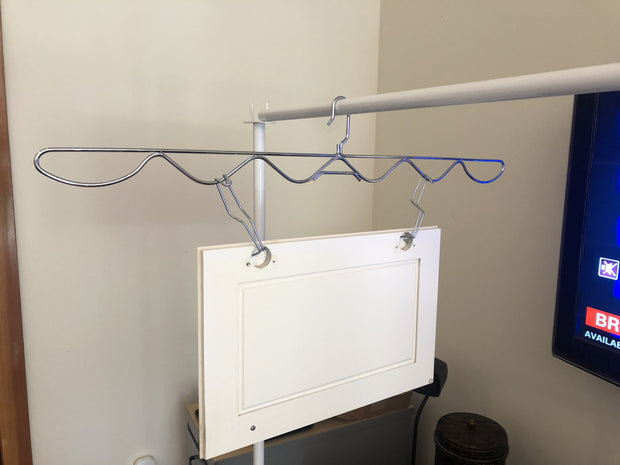

PSDR Wave Hangers (Set of 20)
Regular price
$213.00 CAD (includes shipping)
Taxes calculated at checkout.
The PSDR Wave Hanger can accommodate cabinet doors with hinge holes up to 36" apart. They are custom-fit to the size of the ProDryingRack SD (PSDR) Series poles for minimum swing, allowing you to hang cabinet doors and parts closer together. The PSDR's 18 feet of drying line is enough space for drying up to 50 cabinet doors.
The PSDR Series with EFC Hinge Hooks provides perfect and completely unmarred surface results. EFC's are placed in the cup holes and then fit over one of PaintLine's hangers for "all-sides" spraying and drying. Cup-hooks can also be screwed into the tops and bottoms of cabinet doors to be hung and sprayed.
After painting on the spinner assembly, the door on the hanger is simply transferred over to the drying line where it will hang until ready for door hardware and installation.
- Quantity: 20 Wave Hangers
- Material: Steel
- Color: Silver
- Purchase does not include a carry bag
PJSB™ Disposable Liners
Sale price
$96.00 CAD (includes shipping)
Taxes calculated at checkout.
Plastic disposable liners to be used with the Portable Jobsite Spray Booth (PJSB).
To be used with Non-Flammable / Non-Combustible Paints & Solvents Only. Use with proper respirator.
Material: 2mil LDPE plastic
Quantities: Available in packs of 3 and 24
Disposable Liners are included with:
-
Portable Jobsite Spray Booth (PJSB) Single: 3 pack
-
PJSB Pro Bundle: 3 pack + 24 pack (27 total)
Single use, disposable plastic liners provide overspray protection at your jobsite. 2mil LDPE plastic. Available in packs of 3 and 24.
Disposable Liners are included with the:
-
Portable Jobsite Spray Booth (PJSB) Single: 3 pack
-
PJSB Pro Bundle: 3 pack + 24 pack (27 total)
PJSB™ Ducting (15 ft)
Regular price
$98.00 CAD (includes shipping)
Taxes calculated at checkout.
15' long, 8" diameter ducting that attaches to an 8" Blower for exhaust to exterior environment. These can be chained together for desired length.
To be used with Non-Flammable / Non-Combustible Paints & Solvents Only. Use with proper respirator.
- Ducting is included with the:
- Ducting is not included with the:
- Ducting is included with the:
- Ducting is not included with the:
PJSB™ Duct Reducer
Regular price
$66.00 CAD (includes shipping)
Taxes calculated at checkout.
3' long, ducting section to reduce from 12" opening to 8" to be used with the Portable Jobsite Spray Booth (PJSB).
To be used with Non-Flammable / Non-Combustible Paints & Solvents Only. Use with proper respirator.
- Duct Reducer is included with the:
- Duct Reducer is not included with the:
3' long, ducting section to reduce from 12" opening to 8"
- Duct Reducer is included with the:
- Duct Reducer is not included with the:
PJSB™ Exhaust Vent Attachment
Regular price
$138.00 CAD (includes shipping)
Taxes calculated at checkout.
20" x 20" carbon steel vent structure specifically designed for the Portable Jobsite Spray Booth (PJSB) with 12" flange for attaching ventilation ducting. Easily attaches to the PJSB aluminum frame. The vent attachment is essential for PJSB users if they want to add ventilation.
Purchase includes 1 carry bag.
To be used with Non-Flammable / Non-Combustible Paints & Solvents Only. Use with proper respirator.
- Exhaust Vent Attachment is included with the:
- Exhaust Vent Attachment is not included with the:
- Exhaust Vent Attachment is included with the:
- Exhaust Vent Attachment is not included with the:
Customer Reviews
Based on 5 reviews
100%
(5)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
I definitely recommend getting the exhaust flex pipe attachment as well. Very good quality.
B
This part is built well and holds the filters. It comes with four magnets to hold it together on each side of the booth. Glue the magnets on or you will lose one like I did.
D
Will be using this spray booth for my home woodworking shop (finishing done in garage).
I have not used it yet, but appears to be solid and easy to set-up and take down.
w
Booth vents out fumes just as it should
K
I have some different requirements for a spray booth and already had fabricated one from my excess extruded aluminum profiles. The one thing that i couldn't get quite the way I liked was the exhaust vent attachment. I purchased and received this item and it is:
1. Very solid
2. Well considered design
3. Easy to use
The seal to the plastic via gaskets/magnets is a nice design.
Very pleased to hear that this is working on your booth Kevin. Thanks for the feedback.
PDRKD Replacement Shelves (Set of 17)
Regular price
$105.00 CAD (includes shipping)
Taxes calculated at checkout.
Additional or replacement shelves for the 50-Shelf ProDryingRack (PDRKD).
- Quantity: 17 shelves
- Material: Powder-coated steel
- Color: White
- Size: 18″ x 13″
Customer Reviews
Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
j
These shelves work great. Some are a little hard to put in but with a little elbow grease they will go in place, paintlineco customer service is top notch, would highly recommend their product to any cabinet finisher
R
These shelves work great.
S
Bought these to replace some of my racks. Lifesaver for refinishing cabinet doors. I was soooooo pleased that I was able to purchase these separately.
PSDR Double Joints (Set of 4)
Regular price
$30.00 CAD (includes shipping)
Taxes calculated at checkout.
Replacement Double Joint Connectors to be used with the ProDryingRack SD (PSDR) Series. These Connectors fit in the top of a vertical PSDR pole, then two horizontal poles connect to either or both sides of the pegs for up to 12 feet of drying line.
-
Quantity: Set of 4 (4 pieces total)
- Material: Powder-coated steel
- Color: Orange
Interior Door Spray & Dry Series (PSDRID)
Regular price
$1,813.00 CAD (includes shipping)
Taxes calculated at checkout. **Portable Jobsite Spray Booth Extension and XL Liners (both sold separately) required if using in our Portable Jobsite Spray Booth**
Paint or refinish interior doors quickly and easily with the Interior Door Spray & Dry Series (PSDRID). Single operators are now able to paint multiple, full-size, interior doors in a confined space.
Doors rotate on a foot-operated turntable as they rest on spikes to expose the bottom-edge and allow spraying of all sides of the door from a stationary position. Custom VClips attach at the hinge pocket to not only stabilize the door, but also lift a wet door to move to the drying area. Heavy duty plastic bases attach to the bottom of the door with wood screws to enable the door to stand on its own and to nest closely with other doors of various widths and heights minimizing drying space. The PSDRID includes components for 20 interior doors (with additional 10 door add-on packages), which makes it perfect for most residential projects where all interior doors need to be finished or repainted. Additional components are available to expand the number of doors to suit your project.
When coupled with the new Portable Jobsite Spray Booth Extension with XL Liners, you won’t need to cover the walls and ceiling - just spray inside the taller booth and eliminate worry about overspray.
Benefits
- Single operator
- Handles up to 20 doors with additional 10 door add-on package for larger jobs
- Minimizes space required for spraying and drying
- Spray entire door from a stationary position
- Works with various widths and heights of doors*
- Works with hollow or solid core doors
- Door contact point is only ½" by 1 ½" at the hinge pocket
- Portable for easy transport & storage with the included carry bag
- Eliminate the need to seal the entire room when spraying when coupled with our Portable Jobsite Spray Booth Extension and XL Liners (both sold separately)
- Minimal assembly required
Included
- Turntable and door support arm
- 20 VClips with wood screws
- 40 plastic door base supports with wood screws
- Hand grips for moving wet doors
- 1 overspray guard set
- 2 carry bags (1 for the turntable, 1 for the door base supports)
Best Practices
- Insert then rotate the hand grip on the VClip side before lifting the wet door off
- Add 2-3 plastic door base supports depending on the size and weight of the door
*The PSDRID is designed to work with most interior doors, both hollow core or solid, that are 28"-34" wide and approximately 80" maximum in height. This is not a hard limit, but exceeding could result in less than optimal performance.
WARNING: Sharp spikes represents a potential puncture hazard. Handle with extreme caution. Keep away from children.
Patent Pending
Portable Jobsite Spray Booth™ (PJSB) Extension Bundle
Regular price
$211.00 CAD (includes shipping)
Taxes calculated at checkout.
This Extension Set raises the Portable Jobsite Spray Booth™ (PJSB) by 14.5", increasing it from 2m (80") to 2.4m (94.5") in height. This makes the PJSB tall enough to use the Interior Door Spray & Dry Series (PSDRID) for spraying interior doors and other tall parts.
Features:
- Use the extension poles at the bottom of the frame, adding 14.5" in height
- PJSB dimensions increases to 2.4m (94.5") x 2m (80") x 2m (80")
- Use the clips to fasten any extra liner material to the aluminum frame for extra strength and security
- Components still fit into the single PJSB carry bag
Purchase Includes:
- PJSB Extension Set: 6 extension poles and 6 orange clips
- PJSB XL Liners: 3 pack
- Portable Jobsite Spray Booth™ (PJSB) sold separately
To be used with Non-Flammable / Non-Combustible Paints & Solvents Only. Use with proper respirator.
PSDR Premium Hinge Hooks (Set of 100)
Regular price
$217.00 CAD (includes shipping)
Taxes calculated at checkout.
All new Hinge Hooks (Set of 100) utilize a proprietary design that uses a single, high carbon steel wire to reduce shadowing from the spray pattern on the cabinet door. Manufactured by one of the largest fish hook factories in the world, the razor sharp point of the hook provides added security when holding the cabinet door for spraying and moving to the drying area. PaintLine Hinge Hooks are a significant improvement over standard EFC hooks.
Users can choose either the Standard Hangers, which can accommodate hinge holes up to 15” apart, or the Wave Hangers, which can accommodate cabinet doors with hinge holes up to 36” apart. Both styles of hangers are custom-fit to minimize swing and to allow for tight spacing.
- Quantity: Set of 100
- Material: High Carbon Steel
- Capacity: 25lb each or 50lb per set of 2
- Color: Silver
- Other: Comes with a reusable plastic storage container.
WARNING: Sharp tip represents a potential puncture hazard. Handle with extreme caution. Keep away from children.
